Lepin Electrical galvanised wire mesh cable tray and accessories (SGS RoHS CE)

FOB Reference Price:Get Latest Price
$1.00 - $13.50 / Meter | 100 Meter/Meters (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Lepin
Model Number:
LP-WG
Type:
Wire Mesh
Material:
Steel, SS316L ,SS304 or Q235
Width:
50-800mm
Length:
3000mm
Side Rail Height:
100mm,150mm,200mm or customize
Max. Working Load:
250kg per meter
Powder coating:
>= 70 u
OEM Server:
Available
Free Sample:
Available
Guarantee:
10 years
Electro zinc thickness:
>= 5 u
Surface treatment:
electro zinc plating,HDG,powder coating
Certificates:
ISO 9001,SGS,ROHS,CE
Supply Ability
Supply Ability:
50000 Meter/Meters per Month Electrical galvanised wire mesh cable tray
Packaging & Delivery
Packaging Details
polythelene bag, carton packing with pallet
Port
Ningbo

Lepin   steel wire mesh cable tray  (SGS RoHS CE)

Product Description





wire mesh cable tray    information

length

3000mm

width

500-600mm

height

30-200mm

diameter of the steel wire

3.5mm-6mm

surface treatment

Electro zinc plating for indoor usage

Powder coating for indoor usage (the color is optional)

Hot Dipped Galvanizing for outdoor usage and corrosive environment

Acid Washing or Electrolytic Polishing for stainless products.

delivery

7-10 days after getting the deposit

price term

FOB NINGBO FOB SHANGHAI,CIF NINGBO

package

1.Double layers bubble film wrapped

2. bubble film wrapped thick cardboard.

3.Cartons for accessories of the wire mesh cable tray.

color

any customer point color

max loading

depends on the wire diameter and size of wire basket tray 50kg to 200kg

Salt Spray Tests time

≥48 hours

Electro zinc thickness

≥14dmm for GI cable management system





DETAILS for wire mesh cable tray

Material of   metal cable tray :

Middle carbon steel (Q235 in Chinese standard)

SS201,SS202,SS304, SS316 & SS316L

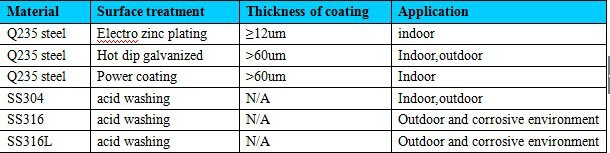

Surface Finish for    hdg metal slotted cable tray  :

Electro zinc plating for indoor usage

Powder coating for indoor usage (the color is optional)

Hot Dipped Galvanizing for outdoor usage and corrosive environment

Acid Washing or Electrolytic Polishing for stainless products.

Dimensions for   m  hdg metal slotted cable tray  :

Height: 30mm, 50mm, 100mm, 150mm,200mm or customize

Widths: 50~800mm

Length: 3000 mm

Diameters of wires: ,4mm,5mm,6mm.



FAQ for our    hdg metal slotted cable tray   ;
Price:we are real manufacturer,we provide you the competitive price.
Delivery:7-12days after getting your deposit
Monthly putout:80000 meters per month for wire mesh cable tray
Price term:FOB NINGBO or SHANGHAI,CIF NINGBO ,EX-WORK



Company Information

Electrical galvanised  wire mesh cable tray



 About our company  hdg metal slotted cable tray

     Our company is a telecommunication products manufacturer specialized in producing optical cable trays, wire mesh cable trays, steel cable ladders, aluminum cable ladders, ladder type cable trays, through type cable chute, cable fixers, and all the accessories.


     We are located in the port city of Ningbo which has one of the biggest seaports in China. Our factory was founded in January of 2006, covers 12,000 square meters and over 100 workers. We have our own design & research team. We are the leading manufacturer for all type of cable trays in China. Our products are widely used in America, Europe, and Southeast Asia. Our products had approved various tests  including SGS,ROHS,CE  . Optical cable tray, cable ladder, and cable fixer had obtained the national patent in year 2010.We have shared 40% market for our aluminum cable ladder,and more than 35% for optical cable tray in China.

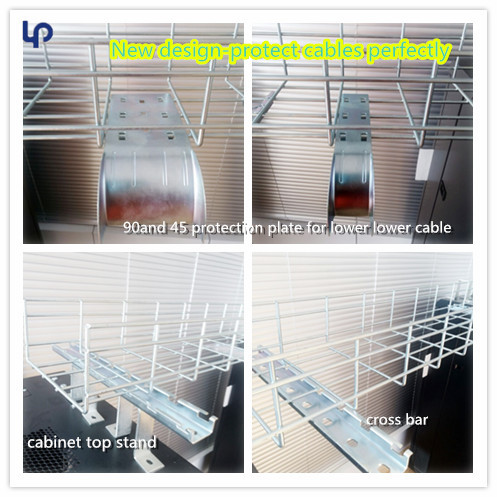

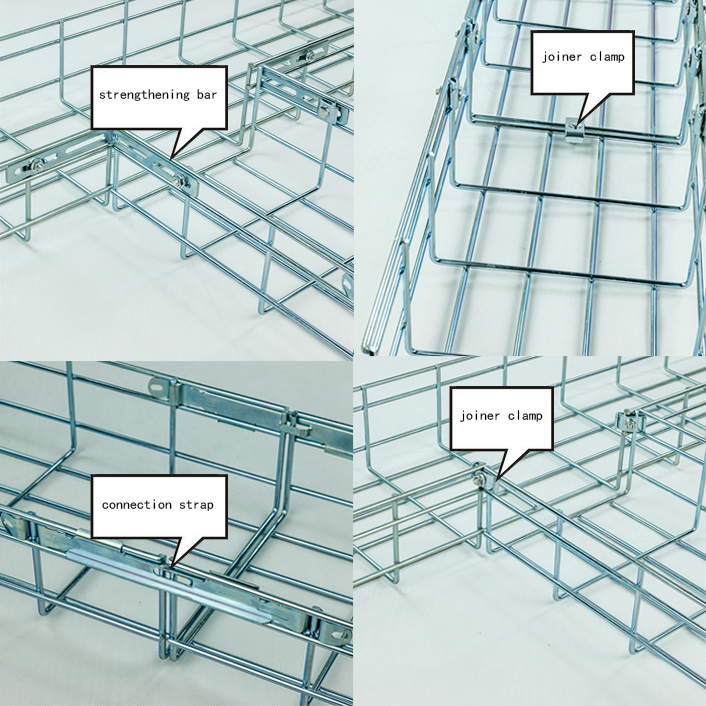

Product Overviews

Electrical galvanised  wire mesh cable tray



_750X750







Buying Guides

Electrical galvanised  wire mesh cable tray

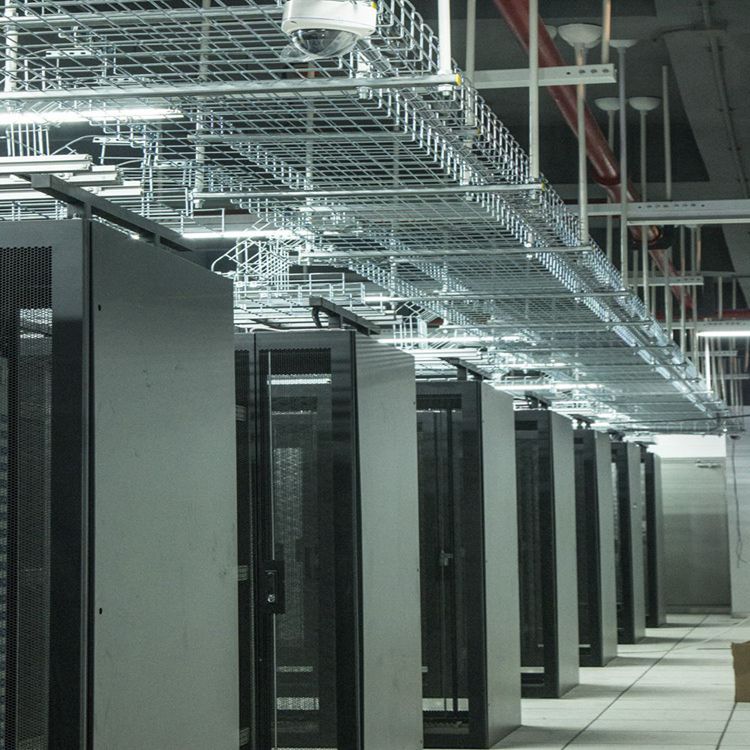

Application   :





  Lepin mesh cable tray system are the ideal basis for quick ,safe and economical cable routing in all areas of professional electrical installation.



Wire mesh cable trays are mainly used for voltage, telecommunication, and fiber optical cables supported on short spans.







steel wire mesh cabletray with good price in 2015



easy to check and clean



 simple maintenance.



 fast heat dispersion



 weight loading capacity is 27% stronger than traditional cable trays and cable ladders



 Cost-saving than traditional cable trays and cable ladders





1 Recommended

2Possible

EZ

GC

PC

304L

316L

Indoor installation,controlled environment

2



1





Outdoor installation



1







Chemical industries,urban environment



2





1

Marine,sulphurous environments



2





1

Acid or alkaline environment



2



2

1

Food production environment







1

1

Halogen environment







2

1







Advantages

Electrical galvanised  wire mesh cable tray

Why you choose our products?1. All the parts of the wire mesh cable tray are made by ourselves,so we can provide more choice and competitive price for you



2. For he raw material,we usd solid 5mm steel wire ,We never cut corners.



3. The Electro zinc thickness ≥14dmm



4. The galvanizing effect for wire mesh cable tray ladder is perfect



5. We have own lab for all kinds of test about the quality.

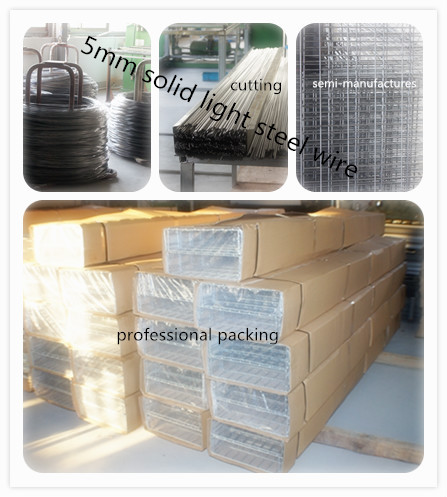

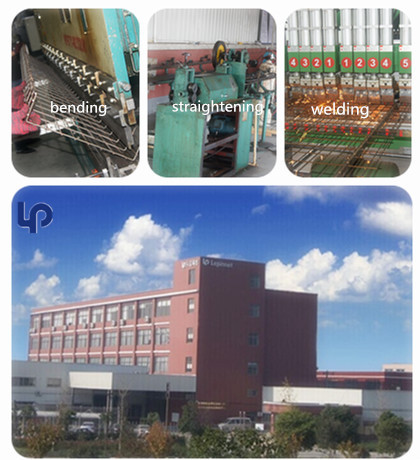

Production Flow

Electrical galvanised  wire mesh cable tray








steel basket cable tray 3.jpg

Electrical galvanised  wire mesh cable tray

Certifications





ISO9001 Quality System

SGS swl approval

SGS welding approval

 ROHS  certificated by TUV

CE certification



paste-pic-dp_uuid_rlzpv



Electrical galvanised  wire mesh cable tray






THE  TESTING

1.Thickness of coating and galvanizedtest,it is  more than 14um

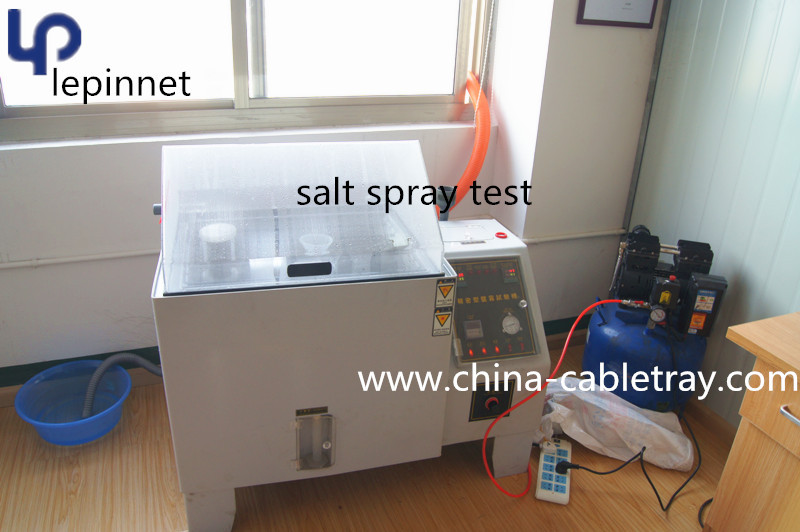

2.The salt spray test over 48 hours

3.The safe loading test ,for all kinds of wire mesh cable tray.



High Quality Cable Tray













.jpg

wire mesh cable tray manufacturer judy

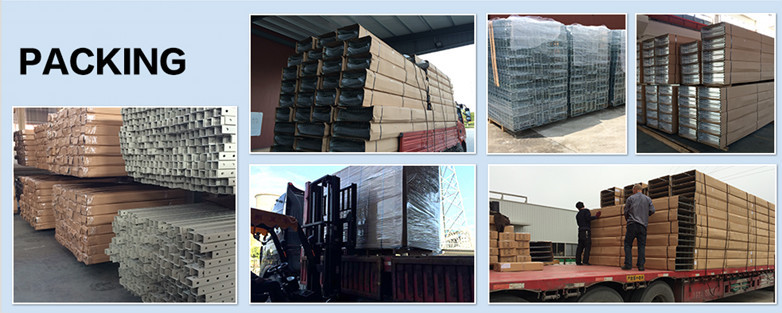

Packaging & Shipping

Electrical galvanised  wire mesh cable tray






 We can tell you about this for our    hdg metal slotted cable tray

1.We are the supplier for telecom,chinamobile,unicom,

2.OEM for Schneider Electric SA,

3.We are the supplier for many global 500 companies.
